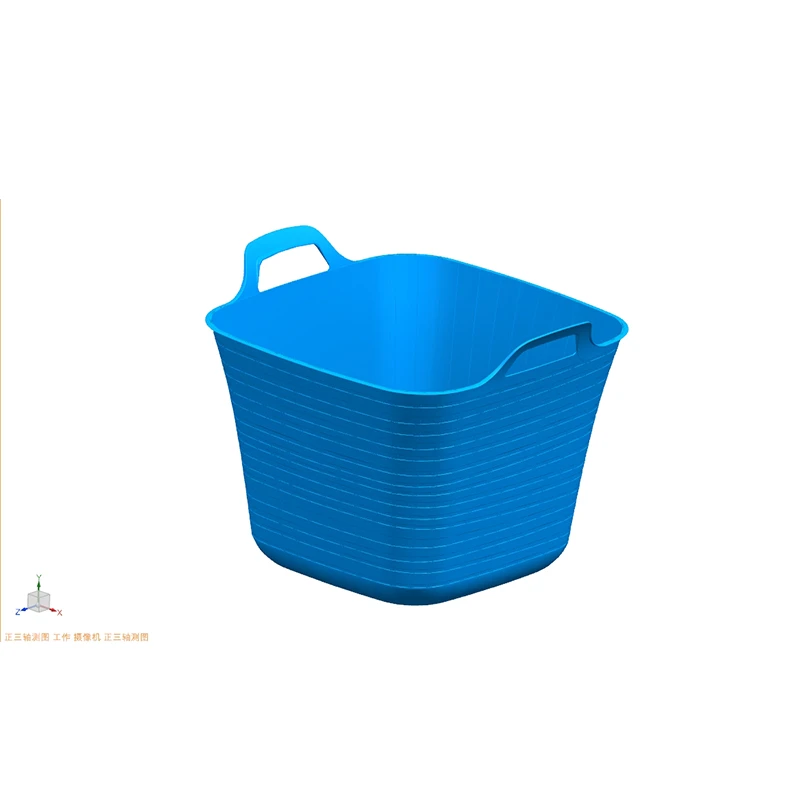

Agricultural Harvest Basket Pwm
Cov pob tawb sau qoob loo ua rau muaj kev ntxhov siab loj heev: cov khoom hnyav hnyav, raug UV, cuam tshuam rau kev sib cais, thiab siab - muaj zog ntxhua khaub ncaws. Kev tsim cov ntim khoom no xav tau cov pwm uas muaj cov khoom sib npaug, cov txheej txheem ejection muaj zog, thiab cov txheej txheem thermal zoo.
Engineered rau txhaj tshuaj xws li 500T mus rau 1200T, peb cov pwm tsom rau cov qauv rigidity, niaj hnub phab ntsa- thickness faib kom tshem tawm sinking los yog warpage, thiab optimized txias layouts uas luv lub sij hawm voj voog rau siab - ntim ntau lawm kab.
Khoom Specifications
|
Technical Parameter |
Specification Range |
Engineering Standard |
|
Siv tau Raw Material |
HDPE, PP (nrog / tsis muaj UV additives) |
Melt Flow Index (MFI) 2-12 g / 10min |
|
Pwm Base Khoom |
S50C, P20, 45# |
LKM / HASCO Standard Plate Tolerances |
|
Cavity & Core Steel |
DIN 1.2738, DIN 1.1730, H13, 718H |
Ua ntej- hardened HRC 32–38; Kev xaiv lub tshuab nqus tsev quenching rau HRC 48-52 |
|
Txhaj Tshuaj |
Kub Khiav / Cold Runner |
YUDO, Synventive, los yog cov neeg siv khoom -txheej txheem rooj vag valve |
|
Ejection Mechanism |
Stripper phaj, angled nqa tus pins, hnyav- lub luag haujlwm ejector tus pins |
Kev taw qhia ncej kev sib haum xeeb nrog hnav- daim hlau tiv taus |
|
Txias System |
Optimized baffled thiab kauv cua txias circuits |
Direct dej- kab teeb tsa los tswj cov thermal distortion |
|
Cia siab tias Pwm Lifespan |
500,000 rau 1,500,000 ntau lawm voj voog |
Khaws nyob rau hauv cov txheej txheem txhaj tshuaj |
Khoom zoo
High Structural Stiffness:Ribbed profile integration mapped ncaj qha mus rau hauv cov tub ntxhais thiab kab noj hniav inserts los tiv thaiv sab - phab ntsa deflection nyob rau hauv siab tshaj plaws loads.
Optimized Thermal Management:Khoos phib tawj- pab kom txias channel tso chaw nyob ib sab rau siab - thaj chaw tshav kub (kho cov ntu thiab cov tav sib sib zog nqus) kom ruaj khov ejection kub thiab txo qis warpage.
Reliable Part Demolding:Engineered cua ntsawj ntshab cov ces kaum thiab polished core nto (SPI Finish Qib A2-B1) ua ke nrog synchronized stripper daim hlau los tiv thaiv ib feem sticking thiab automation jams.
Interchangeable Core Inserts:Standardized hnab tshos tolerances enables sai hloov ntawm siab -coj cheeb tsam, txo cov kab downtime thaum lub sij hawm ntev lawm khiav.
Kev Tswj Xyuas Zoo & Kev Tshuaj Xyuas
Steel Certification Verification:Kev soj ntsuam ultrasonic (UT) cov ntawv ceeb toom thiab cov ntawv pov thawj tshuaj muaj pes tsawg leeg tau tshawb xyuas ua ntej CNC machining.
Dimensional CMM taug qab:Hardened core thiab kab noj hniav blocks txheeb xyuas los ntawm kev sib koom tes ntsuas tshuab ntawm cov kab tseem ceeb thiab kev cuam tshuam, nrog rau cov ncauj lus kom ntxaws CMM tshuaj xyuas ua ntej xa khoom.
Moldflow Simulation Analysis:Tiav ua ntej steel txiav los simulate lub sij hawm sau, weld-kab qhov chaw, cua ntxiab positioning, thiab volumetric shrinkage tus nqi.
Ua ntej -Shipment Trial Run:Yam tsawg kawg nkaus 2-teev kev sim txhaj tshuaj tas li siv cov neeg siv khoom tshwj xeeb. Cov khoom piv txwv tau txheeb xyuas qhov sib xws ntawm phab ntsa, stacking stability, thiab qhov sib txawv ntawm qhov hnyav, txhawb nqa los ntawm kev sim cov duab thiab cov duab kos ua ntej xa tawm.
Customization & Engineering Support
DFM Kev Qhia:Muab xa tuaj hauv 48 teev tom qab tau txais STEP / IGES cov ntaub ntawv ib feem, txheeb xyuas qhov tsis zoo ntawm lub kaum sab xis, cov cim dab dej uas muaj peev xwm, thiab qhov chaw zoo ntawm qhov rooj.
Custom Ventilation Layouts:Cov qauv tsim perforation ntawm cov pob tawb phab ntsa ua tau raws li cov kev xav tau tshwj xeeb rau cov qoob loo khaws cia yam tsis muaj kev cuam tshuam cov qauv kev ntsuas.
Tonnage Matching:Kev sib koom ua haujlwm ncaj qha los ntawm kev txheeb xyuas qhov kaw- tawm qhov siab, clamp quab yuam faib, thiab tshem tawm cov neeg hlau tshem tawm tawm tsam cov khoom lag luam uas twb muaj lawm.
Daim ntawv thov
Cov khoom tshiab sau qoob loo
Teb-mus rau- pob tawb ntim khoom rau citrus, txiv apples, txiv hmab txiv ntoo, thiab pob zeb txiv hmab txiv ntoo.
Agricultural Logistics & Cia
Stackable thiab nestable crate systems siv nyob rau hauv automated txias -chain warehousing thiab tis hubs.
Aquaculture & Ua
Perforated industrial containers deployed in seafood handling and wet-ib puag ncig sorting chaw.
Tom qab -Kev Muag Khoom & Kev Pabcuam
Cov ntaub ntawv pob:Ua tiav kev xa khoom suav nrog 2D sib dhos kos duab, 3D electrode qauv, hydraulic / pneumatic schematic daim duab, thiab cov npe khoom seem.
Spare Parts Muaj:Standardized Cheebtsam (caij nplooj ntoos hlav, coj pins, txheem nozzles) xa tuaj nyob rau hauv 48 teev ntawm kev thov.
Tej thaj chaw deb Engineering Assistance: Video-raws li kev daws teeb meem kev txhawb nqa rau kev hloov pauv, kev ua kom txias txias, thiab cov sij hawm saib xyuas niaj hnub.
FAQ
Q: Dab tsi steel qib tau pom zoo rau kev sau pob tawb pwm khiav dhau 1,000,000 cycles?
A: DIN 1.2738 (ua ntej-hardened rau 32–36 HRC) yog teev rau cov pwm loj thiab cov kab noj hniav daim hlau vim nws polishability thiab toughness. Rau abrasive recycled PP/HDPE blends, localized vacuum hardening (HRC 48–52) yog siv rau siab -coj zawv zawg qhov rooj thiab qhov rooj zones.
Q: Yuav ua li cas warpage tiv thaiv ntawm loj, nyias -cov pob tawb ua liaj ua teb?
A: Warpage yog tswj ntawm ob theem: ua ntej, los ntawm Moldflow simulation kom sib npaug puv siab thiab tshem tawm qhov sib txawv txias; thib ob, los ntawm kev sib koom ua ke siab - ntom ntom baffled txias kab ncaj qha mus rau hauv cov tub ntxhais sab kom ntseeg tau tias cov cua kub sib txawv ua ntej tso tawm.
Q: Puas yog cov khoom siv hluav taws xob kub uas twb muaj lawm tuaj yeem muab tso rau hauv cov pwm tshiab?
A: Yog. Tus qauv hnab tshos qhov ntev thiab cov txheej txheem xaim tau teeb tsa kom haum rau koj cov khoom lag luam (xws li YUDO, Incoe, Husky), txo qis kev saib xyuas sab hauv kev cob qhia nyiaj siv ua haujlwm thiab theej cov khoom seem.
Q: Dab tsi yog lub sij hawm coj mus kuaj los ntawm DFM kev pom zoo rau kev sim pwm?
A: Lub sij hawm txhuas txhuas nyob ntawm 45 txog 60 hnub, tswj hwm los ntawm pwm loj (500T-1200T chav kawm), steel muaj, thiab kab noj hniav suav complexity. Daim ntawv qhia meej Gantt yog muab thaum pom zoo tso nyiaj.
Q: Yuav ua li cas pwm tiv thaiv rau thoob ntiaj teb dej hiav txwv freight?
A: Pwm yog coated nrog anti- xeb tus neeg sawv cev, qhwv hauv hnyav- lub luag haujlwm yas zaj duab xis waterproof, ruaj ntseg hauv lub tshuab nqus tsev- kaw cov hnab ntim dej noo, thiab bolted hauv ISPM 15- ntawv pov thawj fumigated ntoo crates featuring lifting thiab center {5}anchity of-anchity{5}
Q: Cov ntaub ntawv dab tsi yuav tsum tau pib ua cov lus hais thiab DFM?
A: Muab 3D cov qauv qauv hauv STEP, IGES, lossis Parasolid hom, nrog rau qhov kev kwv yees txhua xyoo, lub hom phiaj lub sij hawm kev cia siab, cov khoom siv raw cov ntsiab lus, thiab kev txhaj tshuaj tshuab khi -bar qhov sib nrug qhov ntev.
